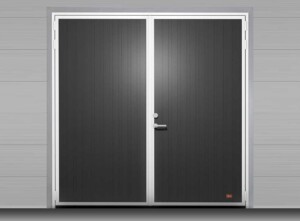

FRAMED HINGED DOOR
The Ecolid framed hinged door is based on Sweden’s best-selling folding door of the same name. The hinged door is equipped with a torsionally rigid C-frame made of natural anodized profiles with thermal break and integrated tracks for EPDM rubber seals. The door is designed to be installed in exterior walls and is therefore equipped with interior mounting brackets which keep the door leaves in the open position.
BENEFITS OF A HINGED DOOR FROM PRIDO
- The doors are developed and manufactured in Sweden
- Entirely made to measure, max. outer frame dimensions 2490×2490 mm
- Supplied with frame screws and adjustment sockets fitted to the frame
- Quick and easy to install
- Bottom seal against floor
- Easy to use automatic mounting brackets for 90° opening
- Highly effective rustproofing
- Window frames with thermal break
- Lock housing with hook bolt lock on the door leaf
- Powerful lever handle included as standard
- Garage bolt for padlocking the side leaves
- Long service intervals – 36 months
- Endurance tested for 1 million openings according to EN13241
- CE-certified according to European standard on doors EN13241
- 7-year warranty within the Nordic countries, other countries 2-year warranty.
Product video: Ecolid
Product video: PriDrive
Installation introduction
Ecolid before installation
The hinged door is best suited for small and medium-sized openings with light foot or vehicle traffic. It is based on our well-known Ecolid folding door and offers the same high quality with top-class rustproofing. The hinged door is essentially maintenance-free thanks to the carefully chosen and durable materials. The door is tailored to the door opening in one of our 11 standard colors. Max. outer frame dimensions 2490×2490
1

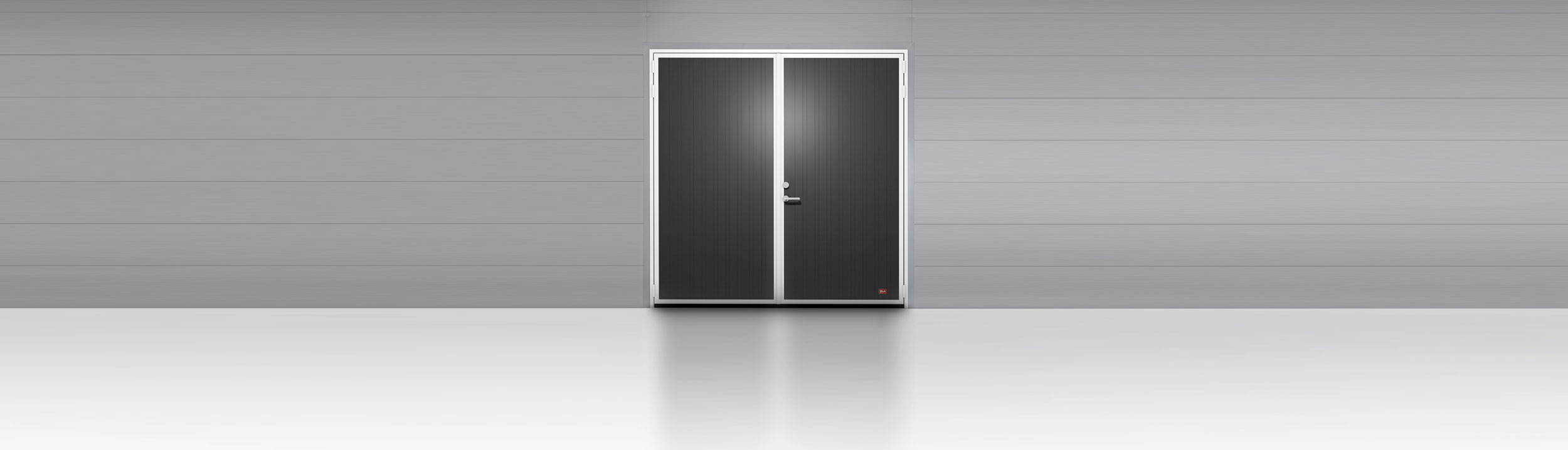

A framed hinged door is equipped with a torsionally rigid C-frame made of natural anodized profiles with thermal break and integrated tracks for EPDM rubber seals. The door is designed to be installed in exterior walls and is therefore equipped with interior mounting brackets which keep the door leaves in the open position. Outer frame dimensions, max. 2490×2490 mm.
2
The door is always designed with a section serving as a pedestrian door (with latch and lever handle).
3
Easy-to-use automatic mounting brackets for 90° opening are supplied as standard.
4
A frameless hinged door from Prido is similar a folding door in many respects. The door is manufactured for overlap installation and has a bottom seal against the floor. The design of the hinged door can be inward-opening or outward-opening.
5
As standard, the hinged door can only be opened and locked from the inside.
6
The door can be designed with a section serving as a pedestrian door (with latch and lever handle) if the door height does not exceed 3200 mm.
Technical data – hinged door without frame
CE Marking Insulation value Air permeability Mechanical durability Water tightness Wind load capacity Safety
Brackets mounted on the door leaves Windows Pedestrian door option Pull handle Frame hinge Lifting hinges (optional) Door leaf Door surrounds
Stable package Safety Seals Mounting bracket Siding 7-year warranty within the Nordic countries, other countries 2-year warranty. Maintenance, service Lock
The hinged doors are CE-marked in accordance with the Construction Products Regulation
and according to applicable standard EN13241.
U-value 1.60 W/(m2/K) on a fully covered door 2.4×2.4 m
or 1.87 W/(m2/K) on the corresponding door with B1 single-glazing.
Calculated according to EN12428.
Class 4, 1.8 m3/m2 h, according to EN12426.
Configured and tested for
1,000,000 opening cycles according to EN13241.
Rating 3 as per EN12425.
Classes 2, 3, 4 or 5 depending on size.
Tested and rated according to EN12444 and
EN12424.
Rubber strips designed to eliminate risk of crushing
between door leaf and door leaf, and door leaf and wall.
At least 3 load-bearing brackets per leaf to prevent
falls.
Electrogalvanized steel or aluminum.
On outward-opening doors, the steel fittings are also powder-coated.
Argon-filled D4-12 insulated-glass panes in six different standard sizes.
Standard chest height approx. 1,070 mm.
7-year warranty within the Nordic countries, other countries 2-year warranty. against condensation between glass panes.
Window frames made from natural anodized aluminum profiles with
thermal breaks.
One door leaf can be converted into a pedestrian door if
the door height is max. 3,200 mm. The pedestrian door section is delivered
with a Dorma DL 919-50 lock housing and Habo Atlanta lever handle.
The strike plate is fitted on the side leaf, which is also equipped with
a garage bolt for padlocking.
Natural anodized aluminum handle.
Multi-size adjustable steel hinges.
Electrogalvanized on inward-opening hinged doors and
electrogalvanized and powder-coated on outward-opening doors.
Lubrication-free Teflon bushings. Screws into door surround.
Raises the door during opening by 10
mm. Suitable for uneven floors. Creates a good seal
when closed and enables soft and smooth opening
without unnecessary wear on the bottom seal.
Process-laminated sandwich panels. 50 mm thickness.
Max. size of individual door leaf 1250 x 4600 mm.
Frame made from natural anodized aluminum profiles.
Cast steel reinforcements as attachment points for hinges, controls, etc.
Made of steel, concrete or wood. At least 3 mm steel for inward opening and at least 4 mm for outward opening.
3 different screw kits depending on the type of door surround.
Hinged doors installed in washrooms or in stables require
a special component package, such as additional
rustproofing, for the warranties to be valid.
Cannot be fitted later.
Rubber strips designed to eliminate the risk of crushing between door leaf and door leaf, and door leaf and wall. Optical crush protection strips at the closing edge of motorized folding doors. All motorized folding doors are equipped with an additional photocell on the folding side. At least 3 load-bearing brackets per folding door to prevent falls.
Made of age-resistant EPDM rubber.
Automatic locking in the open position on both
inward and outward opening doors.
Interior and exterior in hot-dip galvanized sheet metal.
Coated with 25 µm polyester paint.
Refer to separate document detailing our
warranty conditions.
The lowest service requirements in the market.
Once/36 months for manual hinged doors.
Garage bolts for inner padlocking as standard.
If cylinder locking on the interior and exterior is preferred, Prido Fix 480 is available as optional extra.
Technical data – hinged door with frame
CE Marking
The hinged doors are CE-marked in accordance with the Construction Products Regulation
and according to applicable standard EN13241.
Insulation value
U-value 1.58 W/(m2/K) on a fully covered door 2.4×2.4 m
or 1.87 W/(m2/K) on the corresponding hinged door with B1 single-glazing.
Calculated according to EN12428.
Air permeability
Class 4, 1.8 m3/m2 h, according to EN12426.
Mechanical durability
Configured and tested for
1,000,000 opening cycles according to EN13241.
Water tightness
Rating 3 as per EN12425.
Wind load capacity
Classes 2, 3, 4 or 5 depending on size.
Tested and rated according to EN12444 and
EN12424.
Safety
At least 3 load-bearing brackets per leaf to prevent falls.
Frame
Frame in natural anodized aluminum profiles with thermal breaks and integrated frame sockets for screw fitting and adjustment.
Type C frame for tunnel installation in the opening.
Brackets mounted on the door leaves
Internal galvanized steel fitting.
External electrogalvanized and powder-coated hinges.
Windows
Argon-filled D4-12 insulated-glass panes in six different standard sizes.
Standard chest height approx. 1,070 mm.
7-year warranty within the Nordic countries, other countries 2-year warranty. against condensation between glass panes.
Window frames made from natural anodized aluminum profiles with
thermal breaks.
Pedestrian door as standard
One door leaf serves as a pedestrian door. It is delivered
with a Dorma DL 919-50 lock housing and Habo Atlanta lever handle.
The strike plate is fitted on the side leaf, which is also equipped with
a garage bolt for padlocking.
Hinges
3 type ASSA 3220 hinges per side.
Wall attachment
In steel or wood; the supplied screw set works for both options.
Door leaf
Process-laminated sandwich panels. 50 mm thickness.
Max. size of individual door leaf 1204 x 2423 mm.
Frame made from natural anodized aluminum profiles.
Cast steel reinforcements as attachment points for hinges, controls, etc.
Seals
Made of age-resistant EPDM rubber, fitted in frame grooves.
33 mm high bottom seal for sealing against the floor.
Mounting bracket
Fitted fully internally and with automatic locking in the open position.
Operated via an internally placed drawstring.
Siding
Interior and exterior in hot-dip galvanized sheet metal.
Coated with 25 µm polyester paint.
7-year warranty within the Nordic countries, other countries 2-year warranty.
Refer to separate document detailing our
warranty conditions.
Maintenance, service
The lowest service requirements in the market.
Once/36 months for manual doors.
Colour shades, colours for Ecolid industrial doors and folding doors
The colour of an industrial door is obviously of great importance to the overall impression of the building.
All Ecolid industrial doors are clad in sheet steel
SILVER 045
RAL: 9006
GREEN 874
RAL: 6003
LIGHT GREY 022
RAL: 7044
BLUE 558
RAL: 5009
DARK GREY 036
RAL: 7024
WHITE 010
RAL: 9010
RED 758
RAL: 3009
ANTRACIT GREY 035
RAL: 7016
GRAPHITE 044
RAL: 9007
BROWN 434
RAL: 8017
BLACK 015
RAL: 9005
Please note that the actual colour may vary from what is shown on a computer display. For the exact colours, contact us for sheet samples.
Colour composition
- Sheet steel
- Zinc layer
- Passivation layer
- Primer
- Painted with 25 μm polyester paint
- Colour on rear side 10 µm
Environmental Product Declaration – Ecolid folding door
Description of the company and product
The company:
Prido is, with more than 45 years of experience, one of the leading players in its industry.
The company works with design, development, manufacturing and marketing of industrial door solutions for industries and other door users in the Nordic region and Northern Europe.
Our objective is to offer the most attractive range in the industry that is best-adapted to the market.
Head office
Person responsible:
VD Josephine Stjärnerfält, 0512-295 88
josephine@prido.se
Contact person:
Environmental Coordinator Otto Claéson, 0512-295 85
otto.claeson@prido.se
Environmental work:
The company’s environmental policy is available on its website. Regular monitoring is carried out.
The product:
The Ecolid door is a folding door in a process laminated sandwich construction. The framework consists of aluminium profiles with steel reinforcement. The frame is filled with isocyanate and polyol that create a polyurethane insulation. Interior and exterior in hot galvanised sheet steel. Manufacturing takes place at the head office in Tråvad outside Vara. The service life of the door is estimated to be at least 25 years. The specified service life assumes that the product is used under the intended operating conditions. Heavy damage to the paint coating, which also damages the underlying galvanised layer should be repaired. Otherwise, maintenance is only required in accordance with the maintenance instructions in the user manual for the industrial door.
Declaration of contents:
The table below provides information on the composition of Ecolid. Door dimensions are customised to the customer’s requirements, so size varies.
The table shows the contents of the most common version – 4,000 mm x 4,000 mm, with a row of windows and pass door:
| Material | Amount |
| Steel | 233,2 kg |
| Aluminium | 65 kg |
| Rubber | 19,9 kg |
| Plastic | 0,1 kg |
| Polyurethane | 43 kg |
| Windows | 7,2 kg |
| Other | 0,2 kg |
| Totalt | 368,6 kg |
For more information about the constituent components, please contact the manufacturer.
Environmental Performance Declaration:
The information about the product’s environmental performance is divided into a section on manufacturing and a section on use.
Manufacturing:
The use of resources:
– Power Consumption approx. 104 kWh/door.
Pollutant emissions:
– No measurable emissions occur.
Other information:
– Hazardous waste: Some waste occurs with the cleaning of polyol and isocyanate machines. This is dealt with by Stena Recycling destruction. An average of approximately 150 kg per year has accrued, compared to the 192 tonnes of raw material used in production.
– Other waste: Residual products in the form of cut-outs occur in production. They are not classified as hazardous waste, and can be disposed of without restrictions and used for ground insulation.
– Chemicals used in production: Polyol, Isocyanate, hot melt adhesive.
Packaging:
– Packaging is done around a frame. The frame consists of steel side end pieces with wooden feet, wooden slats as spacers and plastic sheet on the bottom of the door packaging. Tied with plastic ties and wooden slats on top of the door frame. Loose accessories are packed in cardboard boxes.
Own emissions:
– None known.
Recycling:
The metal can be recycled. Wood and rubber remnants can be used in energy recovery. Cellular plastic waste can be disposed of without restrictions (not compostable). Glue residues can be burned/disposed of.
