Process-laminated sandwich panels. 50 mm thickness. Max. size, width x height = 1329 mm x 2500 mm. Frame of natural anodized aluminum profiles. Steel reinforcements embedded in door leaf for the hinges, door closer and other components.
Wall opening dimensions
900 x 2100 mm
1000 x 2100 mm
1200 x 2100 mm
Interior and exterior made of hot-dip galvanized sheet steel. Lacquered with 25 µm polyester paint.
50 mm freon-free polyurethane cellular plastic.

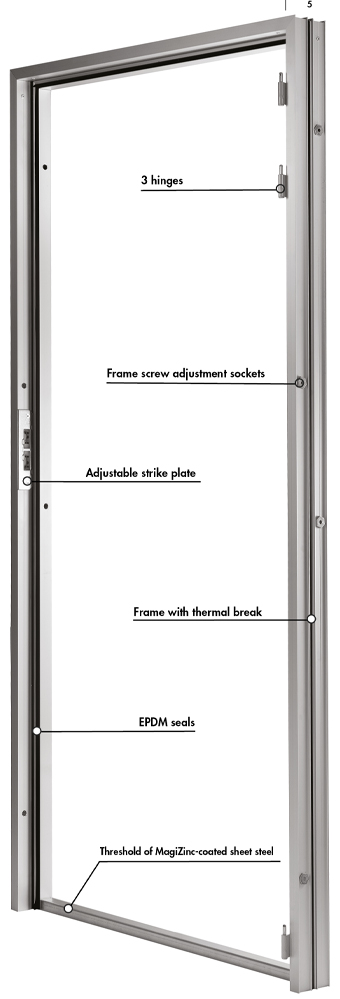

Frame and seals
Natural anodized profiles with thermal break. Integrated tracks for EPDM rubber seals.
Strong threshold made from Magnelis-coated sheet steel.
Locks and fittings
Dorma 919-50 lock housing and adjustable Dorma 9009 strike plate as standard. Optional Step 40 electric strike plate with ASSA 222 lock also available. Other locks and strike plates available at extra charge. Habo Atlanta lever handle as standard. 3 x ASSA 3220 hinges.
8 adjustment sleeves integrated in the aluminum frame. Self-tapping frame screws for steel and wood included.
Argon-filled D4-12 insulated-glass panes in six different standard sizes. Approx. 1070 mm standard breast height. Seven-year warranty against condensation between glass panes. Window frames made from natural anodized aluminum profiles with thermal breaks.
Manual Attack Resistance
Class RC2 in accordance with EN1627 Back Edge Lock (the classification applies provided that the door is equipped with an ASSA D12 round cylinder)
See separate documents for our warranty terms and conditions.
